MOWITAL^® polyvinyl butyral (PVB) technical resin product portfolio

The character of MOWITAL^®

The constellation of properties displayed by the individual grades of MOWITAL^® (polyvinyl butyral technical resin), and thus the suitability of each grade for the particular application, is determined mainly by three factors:

• the degree of acetalisation
• the degree of polymerisation (the solution viscosity)
• the used aldehydes

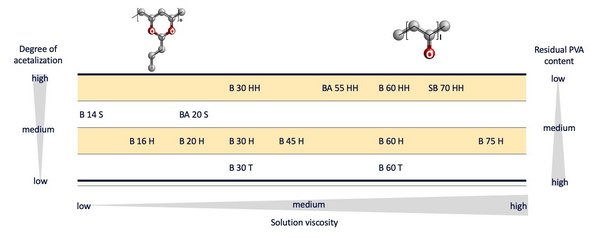

As relative measures of polarity and molecular weight of the polymer, the above parameters are characteristic values of prime importance. The degree of acetalisation of MOWITAL^® correlates directly with the residual concentration of polyvinyl alcohol: the lower the residual PVA concentration, the higher the degree of acetalisation. In the following schematic representation, the different grades of MOWITAL® are arranged according to the above-mentioned ­parameters.

And corresponding nomenclature of MOWITAL^®

The numbers 14, 16, 20, 30, 45, 55, 60, and 75 contained in the type designation for MOWITAL^® are relative measures indicating the increasing degree of polymerisation or molar mass and thus the rising solution viscosity. The alphabetical suffix points to the increasing degree of acetalisation ranging from the T grades over the H grades up to the HH grades.
